Adding watches
Return to Introduction  Previous page  Next page

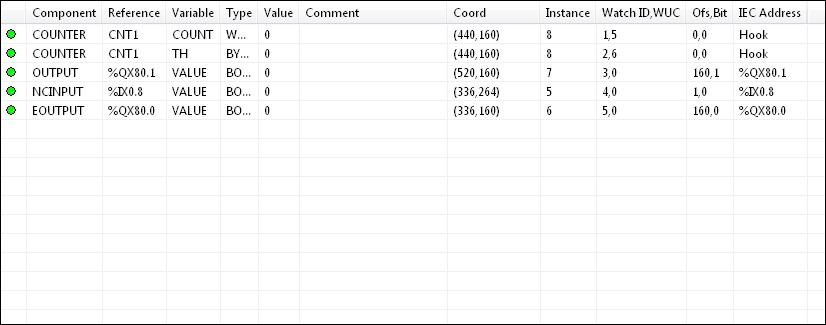

The Watches are variable that are shown into the dedicated IDE window. This is useful to analyze run-time values during PLC running. Users can debug projects checking variable and I/O values when PLC process programs. Watches can be added or removed on-the-fly



ide_watch_window_example



Watches can be added simply following the listed operations



•Select a component on the diagram with the mouse's left button
•Access the context menu clicking over it with the mouse's right button
•Click on the Add Watch command

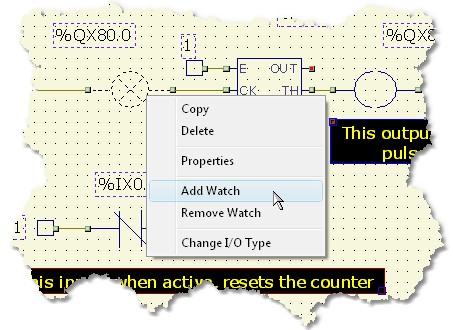

Here is a sample image of the adding sequence



ide_watch_add



Once a variable is in the watch window its value will be automatically refreshed when the PLC is running.
